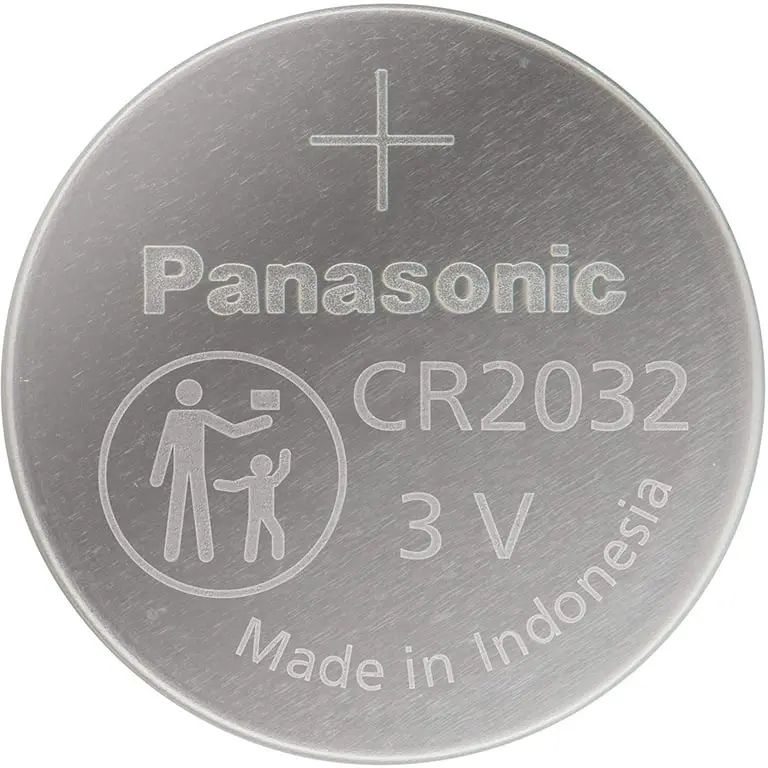

Model: CR2032
Voltage: 3.0V (nominal)
Capacity: 220–225mAh
Chemistry: Lithium Manganese Dioxide (LiMnO₂)
Dimensions: 20.0 mm diameter × 3.2 mm height
Weight: Approximately 2.9–3.1 grams
Operating Temperature Range: -30°C to +60°C
Shelf Life: Up to 10 years when stored properly
Equivalent Standards: IEC CR2032, ANSI/NEDA 5004LC
Termination Style: Requires holder; available with tabs or lead wires for specific applications
