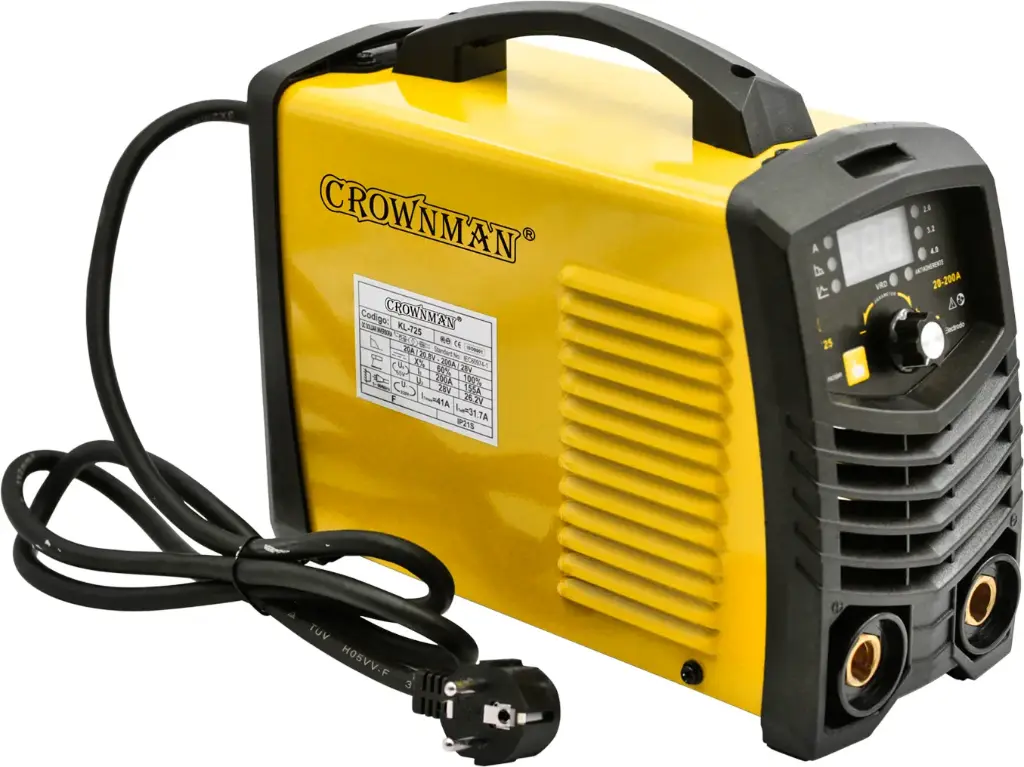

[1546160] 160A 220V 50-60Hz مكنة تلحيم

Plug: European VDE three-pole round plug

Case: Iron with a black plastic handle

End cap: Black plastic with a digital display and function selector buttons for anti-stain, thrust, hot arc ignition, and VDR (earth leakage protection). Also included is a rod selector button that automatically adjusts the current to the correct value.

Accessories: 200A welding tongs, 200A welding clamp, face shield, and slag hammer

Voltage/Frequency: 220V/50-60Hz

No-load Voltage: 60±5V

Output Voltage: 26.4V

Rated Input Current: 30.9A

Output Current: 20-160A

Duty Cycle: 30% 160A (Ambient Temperature: 25°C)

Efficiency: 85%

Power Cord: Rubber-Plastic Copper Wire, 2.0sqm x 3 strands x 1.5m (Exposed)

Ground Wire: PVC Copper-Clad Aluminum Wire, 16sqm x 1.4m (Exposed)

Output Cord: PVC Copper-Clad Aluminum Wire, 16sqm x 2.0m (Exposed)

Case Dimensions: 290*130*235mm

PCB: 1.6mm

Technology: Half-bridge with Anti-Stick, 50T65*4 IGBTs (Silan Microelectronics)

Diode: 80UP20*3 (Shengxin)

Capacitor: 680UF*2

Transformer O-shaped ferrite + aluminum wire (T50*28*28)

Rectifier bridge 50A (Leshan Hill)

Insulation grade F

Enclosure protection grade IP21S
